Ship handling systems

Ship loading and unloading systems

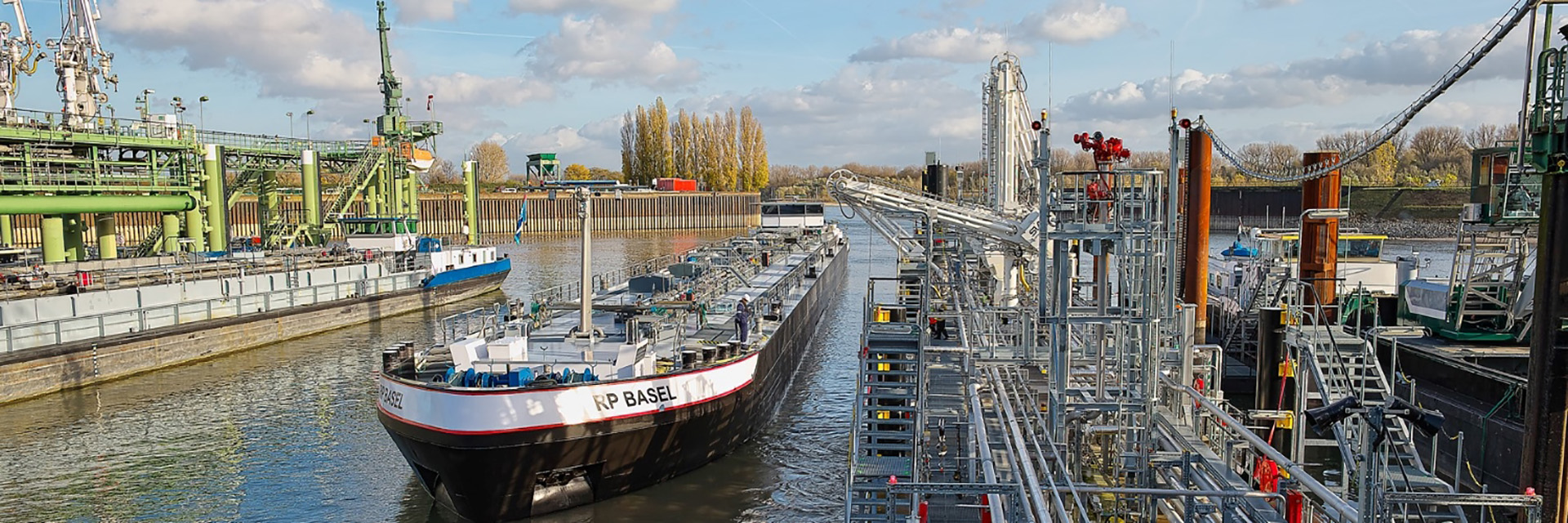

Systems for loading and unloading inland vessels and seagoing vessels and the associated jetties are designed according to the respective local conditions. Steel pipe articulated loaders or hose safety systems with drift protection and safety decoupling devices serve as transfer stations to prevent product from entering into the water. The products are stored and retrieved via a combined pipe distribution system to the tanks or the tanker.

The corresponding distributor is emptied after each loading process using a residual emptying system.

Ship loading

The ship is loaded from the involved tanks using the tank farm's own pumps via a calibrated and temperature-compensated measuring system. Data logging is recorded automatically using a loading computer or manually using a receipt printer. The loading quantity is chosen using the quantity preselection and the loading process ends automatically.

Ship unloading

The ship is unloaded using the ship's own pumps or stationary pumps on the jetty.

Data logging should preferably be carried out using calibrated tank level measuring devices, since volumetric measuring devices have to be designed to be more complex due to the high amounts of gas in the bilge phase of the ship's unloading.

The hydrocarbon vapors generated during ship loading can be fed to a reliquefaction plant using the tanks.
